Ёмкость, С ном
5 Ф
Напряжение, U ном
2,7 В
Допускаемое отклонение ёмкости
±20; +50 … -20%
Рабочая температура среды при эксплуатации
-50 … +65 °C
Iут, T=25°C, 72ч, не более
15 мкА
Предельный зарядный и разрядный ток*
4,5 А
Rэкв. пост. току, T=25°C, не более
45 мОм
Масса (фактическая)
2,3 г
Диаметр (D)
10 мм
Длина (H)
20 мм
Расстояние между выводами (A)
5,5 мм
Гамма-процентный срок сохраняемости конденсаторов Tcy при y=95%
25 лет
Предельно-допустимый режим эксплуатации
30000 циклов
(1500 ч)
(1500 ч)
Типовой режим эксплуатации
500000 циклов
(30000 ч)
(30000 ч)
* Разрядка в течение 1сек. от Uном до ½ Uном.
** Режим дирейтинга (Uном = 2.3В, tраб = -40 … +85°C).
Диаметр (D) — 10 мм
Длина (Н) — 20 мм
Расстояние между выводами (A) — 5,5 мм
Диаметр вывода (d) — 0,6 мм

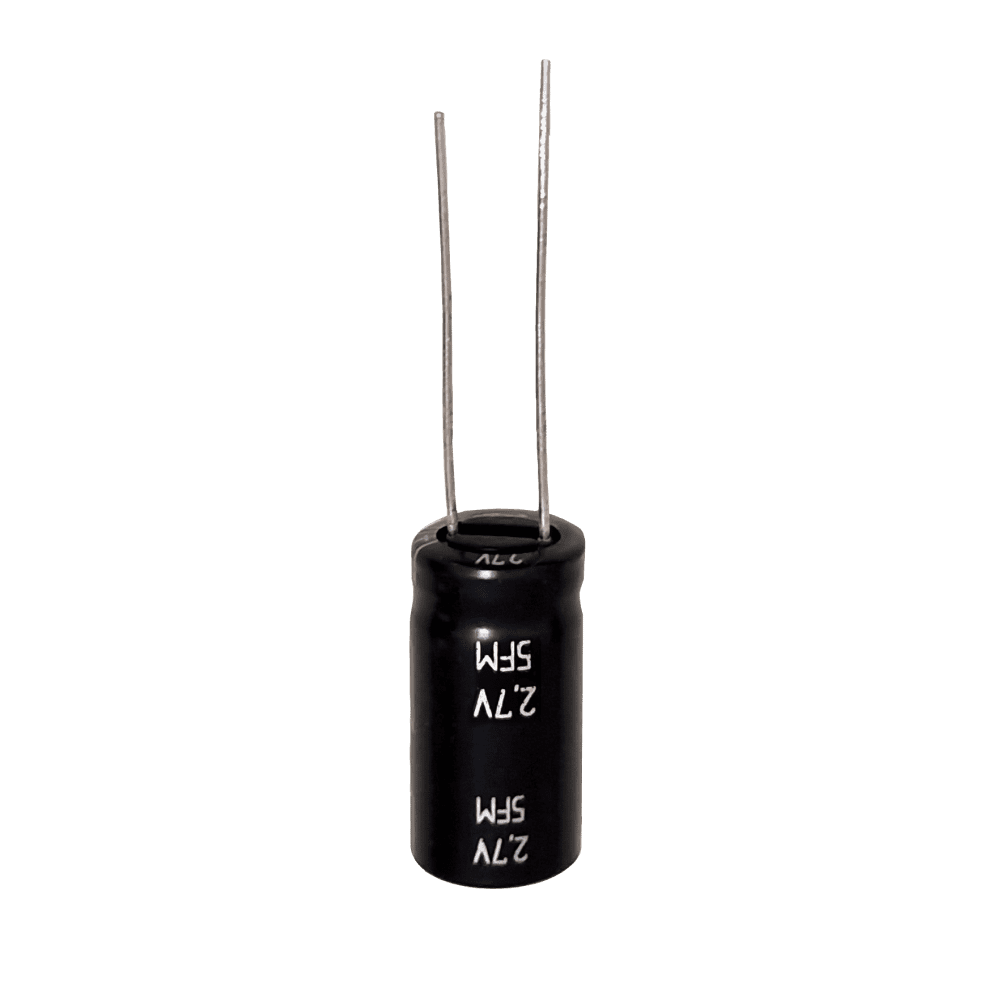

КОНДЕНСАТОР К58-26 — 2,7В — 5Ф ±20% ЕВАЯ.673811.006 ТУ
КОНДЕНСАТОР К58-26 — 2,7В — 5Ф ±20% — И — ЕВАЯ.673811.006 ТУ
КОНДЕНСАТОР К58-26 — 2,7В — 5Ф (+50-20)% — В — ЕВАЯ.673811.006 ТУ
КОНДЕНСАТОР К58-26 — 2,7В — 5Ф (+50-20)% — И — B — ЕВАЯ.673811.006 ТУ
В – всеклиматическое исполнение (покрытие лаком);
И – очехление трубкой изолирующей;
ИВ – очехление трубкой изолирующей и покрытие лаком
| Заменяемый зарубежный аналог (partnumber) | Изготовитель | Напряжение, В | Емкость, Ф |
|---|---|---|---|
| SCCR25B505PRB | AVX | 2.7 | 5 |
| SCCS20B505PRB | AVX | 2.7 | 5 |
| SCCR25E505PRB | AVX | 3.0 | 5 |
| SCCS20E505PRB | AVX | 3.0 | 5 |
| BNDER3R0505QRH100020E | Bainacap | 3.0 | 5 |
| BNDPR2R7505QRH100020E | Bainacap | 2.7 | 5 |
| BRP002R8L405FA | Bigcap | 2.8 | 4 |
| BRP002R8L475FA | Bigcap | 2.8 | 4.7 |
| BRP002R8L475FB | Bigcap | 2.8 | 4.7 |
| BRP002R8L505FA | Bigcap | 2.8 | 5 |
| BRP002R8L505FB | Bigcap | 2.8 | 5 |
| BRP002R8L605FA | Bigcap | 2.8 | 6 |
| BRP003R0L505FA | Bigcap | 3.0 | 5 |
| BRE002R7L405FA | Bigcap | 2.7 | 4 |
| BRE002R7L475FA | Bigcap | 2.7 | 4.7 |
| BRE002R7L475FB | Bigcap | 2.7 | 4.7 |
| BRE002R7L475FC | Bigcap | 2.7 | 4.7 |
| BRE002R7L505FA | Bigcap | 2.7 | 5 |
| BRE002R7L605FA | Bigcap | 2.7 | 6 |
| BRT002R7L405FA | Bigcap | 2.7 | 4 |
| BRT002R7L505FA | Bigcap | 2.7 | 5 |
| BRT002R7L605FA | Bigcap | 2.7 | 6 |
| BUP002R8L455FA | Bigcap | 2.8 | 4.5 |
| BUP002R8L505FA | Bigcap | 2.8 | 5 |
| HY12R710020V505R | CAP-XX | 2.7 | 5 |
| GY12R708025V505R | CAP-XX | 2.7 | 5 |
| GY12R710020V505R | CAP-XX | 2.7 | 5 |
| GY13R008025V505R | CAP-XX | 3.0 | 5 |
| GY13R010020V505R | CAP-XX | 3.0 | 5 |
| CHV-2R7405R-TW | CDA | 2.7 | 4 |
| CHV-2R7475R-TW | CDA | 2.7 | 4.7 |
| CHV-2R7505R-TWX | CDA | 2.7 | 5 |
| CHV-2R7505R-TW | CDA | 2.7 | 5 |
| CHW-2R7505R-TW | CDA | 2.7 | 5 |
| CXP-3R0505R-TWX | CDA | 3.0 | 5 |
| CXP-3R0505R-TW | CDA | 3.0 | 5 |
| CXHP2R7405R-TW | CDA | 2.7 | 4 |
| CXHP2R7475R-TW | CDA | 2.7 | 4.7 |
| CXHP2R7505R-TWX | CDA | 2.7 | 5 |
| CXHP2R7505R-TW | CDA | 2.7 | 5 |
| CHQ-2R7405R-TW | CDA | 2.7 | 4 |
| CHQ-2R7475R-TW | CDA | 2.7 | 4.7 |
| CHQ-2R7505R-TWX | CDA | 2.7 | 5 |
| CHQ-2R7505R-TW | CDA | 2.7 | 5 |
| DGH505Q2R7 | Cornell Dubilier | 2.7 | 5 |
| DGH605Q2R7 | Cornell Dubilier | 2.7 | 6 |
| DSF405M3R0 | Cornell Dubilier | 3.0 | 4 |
| DSF505Q3R0 | Cornell Dubilier | 3.0 | 5 |
| 475DCN2R7SGJG | Cornell Dubilier | 2.7 | 4.7 |
| 505DCN2R7Q | Cornell Dubilier | 2.7 | 5 |
| 475DER2R5SGU | Cornell Dubilier | 2.5 | 4.7 |
| SCN2R7S505 | CSDWELL | 2.7 | 5 |
| SCN3R0S505 | CSDWELL | 3.0 | 5 |
| ZND3ROS505RS0825 | DIN Electronics | 3.0 | 5 |
| ZND3ROS505RS1020 | DIN Electronics | 3.0 | 5 |
| ZNP505S2R7RS | DIN Electronics | 2.7 | 5 |
| HB1020-2R5505-R | Eaton | 2.5 | 5 |
| HB0830-2R5605-R | Eaton | 2.5 | 6 |
| HV1020-2R7505-R | Eaton | 2.7 | 5 |
| HV0830-2R7605-R | Eaton | 2.7 | 6 |
| M1030-2R5605-R | Eaton | 2.5 | 6 |
| TV1020-3R0605-R | Eaton | 3.0 | 6 |
| RSDZ14752R5F20300T | Elna | 2.5 | 4.7 |
| RSDZ15652R5F20300T | Elna | 2.5 | 5.6 |
| RSDZ14752R7F20300T | Elna | 2.7 | 4.7 |
| RSDZ15652R7F20300T | Elna | 2.7 | 5.6 |
| RSDZN4752R5F20300T | Elna | 2.5 | 4.7 |
| RSDZN5652R5F20300T | Elna | 2.5 | 5.6 |
| RSDZN4752R7F20300T | Elna | 2.7 | 4.7 |
| RSDZN5652R7F20300T | Elna | 2.7 | 5.6 |
| RSDDU3352R7E20300T | Elna | 2.7 | 3.6 |
| GTSP-2R7-475ZR | GTCAP | 2.7 | 4.7 |
| GTSP-2R7-505ZR | GTCAP | 2.7 | 5 |
| HCAP-C 2R7 505 | HCCCap | 2.7 | 5 |
| SR2R7475Z-L | Heter | 2.7 | 4.7 |
| SCCDER3R0505Q | Jianghai | 3.0 | 5 |
| SCCDPR2R7505Q | Jianghai | 2.7 | 5 |
| CECB3R0505Q100020E | JINPEI | 3.0 | 5 |
| CECA2R7505Q100020E | JINPEI | 2.7 | 5 |
| HP-2R7-J405VYJ13 | KAMCAP | 2.7 | 4 |
| HP-2R7-J405VYJ09 | KAMCAP | 2.7 | 4 |
| HP-2R7-J405VYJ07 | KAMCAP | 2.7 | 4 |
| HP-2R7-J475VYJ09 | KAMCAP | 2.7 | 4.7 |
| HP-2R7-J505VYJ13 | KAMCAP | 2.7 | 5 |
| HP-2R7-J505UYJ04 | KAMCAP | 2.7 | 5 |
| HP-2R5-J505TYJ07 | KAMCAP | 2.7 | 5 |
| HP-2R7-J605VYJ11 | KAMCAP | 2.7 | 6 |
| HP-2R7-J605VYJ04 | KAMCAP | 2.7 | 6 |
| HP-2R7-J605VYJ13 | KAMCAP | 2.7 | 6 |
| HE-2R7-J475VYJ09 | KAMCAP | 2.7 | 4.7 |
| HP-3R0-J405VYJ13 | KAMCAP | 3.0 | 4 |
| HP-3R0-J405VYJ07 | KAMCAP | 3.0 | 4 |
| HP-3R0-J475VYJ13 | KAMCAP | 3.0 | 4.7 |
| HP-3R0-J475VYJ09 | KAMCAP | 3.0 | 4.7 |
| HP-3R0-J505UYJ04 | KAMCAP | 3.0 | 5 |
| HP-3R0-J505VYJ13 | KAMCAP | 3.0 | 5 |
| HP-3R0-J505TYJ07 | KAMCAP | 3.0 | 5 |
| HP-3R0-J605VYJ13 | KAMCAP | 3.0 | 6 |
| LR-2R7-J505UYJ04 | KAMCAP | 2.7 | 5 |
| LR-2R7-J505VYJ13 | KAMCAP | 2.7 | 5 |
| HT-2R7-J405VYJ13 | KAMCAP | 2.7 | 4 |
| HT-2R7-J405VYJ07 | KAMCAP | 2.7 | 4 |
| HT-2R7-J475VYJ09 | KAMCAP | 2.7 | 4.7 |
| HT-2R7-J475VYJ13 | KAMCAP | 2.7 | 4.7 |
| HT-2R7-J505TYJ07 | KAMCAP | 2.7 | 5 |
| HT-2R7-J505VYJ13 | KAMCAP | 2.7 | 5 |
| HT-2R7-J505UYJ04 | KAMCAP | 2.7 | 5 |
| HT-2R7-J605VYJ09 | KAMCAP | 2.7 | 6 |
| HT-2R7-J605VYJ13 | KAMCAP | 2.7 | 6 |
| HT-2R7-J605VYJ37 | KAMCAP | 2.7 | 6 |
| HVZ0E475NF | KEMET | 2.7 | 4.7 |
| DR2R5505R | KORCHIP | 2.5 | 5 |
| DR2R5505S | KORCHIP | 2.5 | 5 |
| DR2R7505R | KORCHIP | 2.7 | 5 |
| DR2R7505S | KORCHIP | 2.7 | 5 |
| DR3R0505 | KORCHIP | 3.0 | 5 |
| DRT2R5505 | KORCHIP | 2.5 | 5 |
| HP2R5405 | KORCHIP | 2.5 | 4 |
| HP2R5555 | KORCHIP | 2.5 | 5.5 |
| HP2R7405 | KORCHIP | 2.7 | 4 |
| HP2R7555 | KORCHIP | 2.7 | 5.5 |
| SCCDLR2R7505QRH100020E | Lelon | 2.7 | 5 |
| BCAP0005 P270 X01 | Maxwell | 2.7 | 5 |
| BCAP0005 P300 X11 | Maxwell | 3.0 | 5 |
| BCAP0005 P270 S01 | Maxwell | 2.7 | 5 |
| ESHSR-0005C0-002R7 | Nesscap | 2.7 | 5 |
| ESHSR-0006C0-002R7 | Nesscap | 2.7 | 6 |
| JUWT1475MPD | Nichicon | 2.7 | 4.7 |
| JUMT1475MHD | Nichicon | 2.7 | 4.7 |
| JUAT1475MPD | Nichicon | 2.7 | 4.7 |
| JUAT1405MPD | Nichicon | 2.7 | 4 |
| DR2R5505 | Omoxi | 2.5 | 5 |
| HP2R5505 | Omoxi | 2.5 | 5 |
| HP2R5605 | Omoxi | 2.5 | 6 |
| DR2R7505 | Omoxi | 2.7 | 5 |
| HP2R7505 | Omoxi | 2.7 | 5 |
| HP2R7605 | Omoxi | 2.7 | 6 |
| EECHL0E405 | Panasonic | 2.7 | 4 |
| EECHZ0E475 | Panasonic | 2.5 | 4.7 |
| СКФ-5-2В7 | PHOENIX | 2.7 | 5 |
| СКФ-6-2В7 | PHOENIX | 2.7 | 6 |
| СКФ-5-3В0 | PHOENIX | 3.0 | 5 |
| PEC02R7SN50510020 | Pureechem | 2.7 | 5 |
| PVC03R0SN50510020 | Pureechem | 3.0 | 5 |
| PTC02R7SN50510020 | Pureechem | 2.7 | 5 |
| DJ0E505W10020BB | Samwha | 2.5 | 5 |
| DS0E505W10020BB | Samwha | 2.5 | 5 |
| DS0U505W10020BB | Samwha | 3.0 | 5 |
| DS5U505W10020BB | Samwha | 2.7 | 5 |
| DRL475S0TG20RRASP | Samxon | 2.7 | 4.7 |
| DRE475S0EG20RR | Samxon | 2.5 | 4.7 |
| DRL475S0TG20RR | Samxon | 2.7 | 4.7 |
| C10S-3R0-0005 | SECH | 3.0 | 5 |
| SP-2R7-4R7-RWM | Shenmao | 2.7 | 4.7 |
| SP-3R0-4R0-RGM | Shenmao | 3.0 | 4 |
| SP-3R0-4R7-RWM | Shenmao | 3.0 | 4.7 |
| SP-3R0-5R0-RFM | Shenmao | 3.0 | 5 |
| SRE2R5L475 | SRT | 2.5 | 4.7 |
| SRP2R7L475 | SRT | 2.7 | 4.7 |
| RSELP5052R7F20023 | TAIYO YUDEN | 2.7 | 5 |
| TPLH-3R0/4.0WR8X20 | TECATE GROUP | 3.0 | 4 |
| TPLH-3R0/6.0WR10X20 | TECATE GROUP | 3.0 | 6 |
| TPLH-2R7/4.0WR8X20 | TECATE GROUP | 2.7 | 4 |
| TPLH-2R7/6.0WR10X20 | TECATE GROUP | 2.7 | 6 |
| TPL-4.0/10X20F | TECATE GROUP | 2.7 | 4 |
| TPL-5.0/10X20F | TECATE GROUP | 2.7 | 5 |
| TPL-6.0/10X20F | TECATE GROUP | 2.7 | 6 |
| TPL-6.0/8X28F | TECATE GROUP | 2.7 | 6 |
| PC5 | TECATE GROUP | 2.5 | 4 |
| SC2V7L505M | VIKING | 2.7 | 5 |
| SC2V7L505M-1 | VIKING | 2.7 | 5 |
| SC2V7L605M | VIKING | 2.7 | 6 |
| SC2V7L505MLR | VIKING | 2.7 | 5 |
| SC2V7L505MLR-1 | VIKING | 2.7 | 5 |
| SC2V7L605MLR | VIKING | 2.7 | 6 |
| SC3V0L505MV | VIKING | 3.0 | 5 |
| SC3V0L505MV-1 | VIKING | 3.0 | 5 |
| SC3V0L6059V | VIKING | 3.0 | 6 |
| SC2V7L505MH | VIKING | 2.7 | 5 |
| SC2V7L605MH | VIKING | 2.7 | 6 |
| VEC3R0505QD | VinaTech | 3.0 | 5 |
| VEC3R0505QG | VinaTech | 3.0 | 5 |
| WEC3R0505QD | VinaTech | 3.0 | 5 |
| WEC3R0505QG | VinaTech | 3.0 | 5 |
| WEC2R7505QA | VinaTech | 2.7 | 5 |
| WEC2R7505QG | VinaTech | 2.7 | 5 |
| VET2R7505QG | VinaTech | 2.7 | 5 |
| VEC2R7505QA | VinaTech | 2.7 | 5 |
| VEC2R7505QG | VinaTech | 2.7 | 5 |
| MAL222031011E3 | Vishay | 2.7 | 5 |
| MAL222051011E3 | Vishay | 2.7 | 5 |
| MAL222551011E3 | Vishay | 2.7 | 5 |
| MAL222531011E3 | Vishay | 2.7 | 5 |
| MAL223051011E3 | Vishay | 3.0 | 5 |
| MAL223031011E3 | Vishay | 3.0 | 5 |
| MAL223551011E3 | Vishay | 3.0 | 5 |
| MAL223531011E3 | Vishay | 3.0 | 5 |
| VSCS 002R5 505 | Vitzrocell | 2.5 | 5 |
| VSCS 002R7 505 | Vitzrocell | 2.7 | 5 |
| 850617021001 | Wurth Elektronik | 2.7 | 5 |
| GPL2R7405M1020 | Yec | 2.7 | 4 |
| GPL2R7505M1020 | Yec | 2.7 | 5 |
| GPL2R7605M0828 | Yec | 2.7 | 6 |
| GPL2R7605M1020 | Yec | 2.7 | 6 |
| PV3R0505M0825 | Yec | 3.0 | 5 |
| PV3R0605M0828 | Yec | 3.0 | 6 |
| WPL-5F2.7V1020 | Yellow Stone Corp | 2.7 | 5 |
| WPL-6F2.7V0828 | Yellow Stone Corp | 2.7 | 6 |
| WPL-6F2.7V1020 | Yellow Stone Corp | 2.7 | 6 |
| WPL-4F2.7V1020 | Yellow Stone Corp | 2.7 | 4 |
| WPV-5F3V0825 | Yellow Stone Corp | 3.0 | 5 |
| WPV-6F3V0828 | Yellow Stone Corp | 3.0 | 6 |
| UCZSS2R7505NRH080020E | ZTT | 2.7 | 5 |
| UCZSS2R7505NRH080025E | ZTT | 2.7 | 5 |
| UCZSS2R7505NRH100020E | ZTT | 2.7 | 5 |
| UCZSH3R0505NRH100020E | ZTT | 3.0 | 5 |
